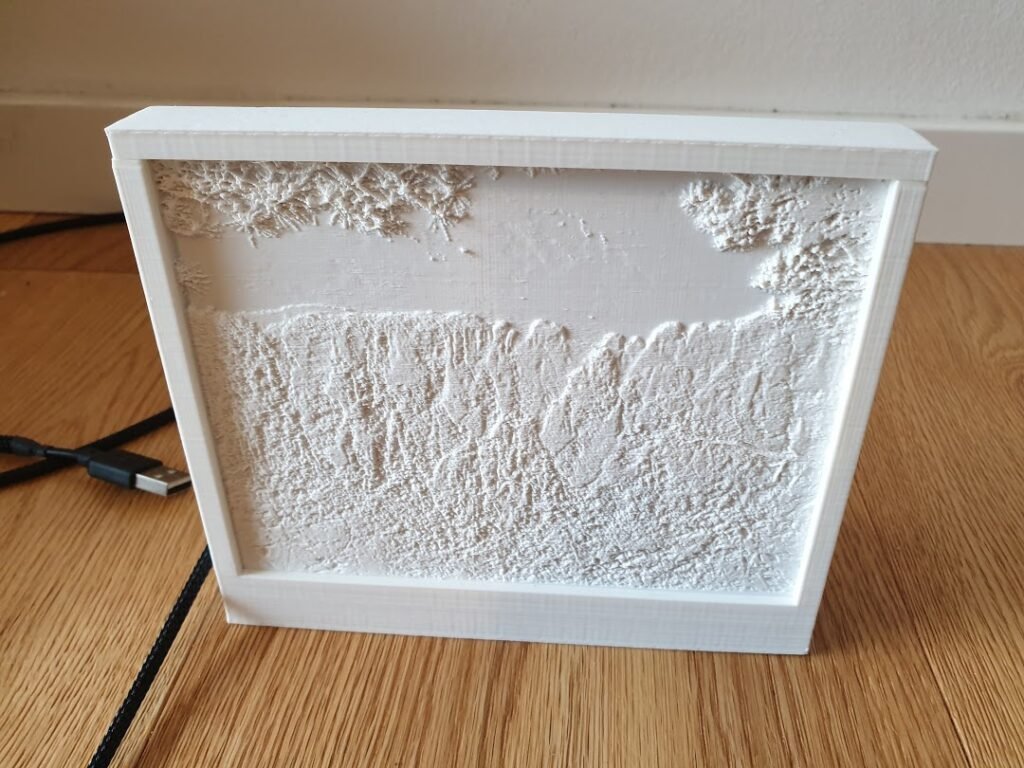

A frame for lithophanes. Designed to work with 5V LED strips such that it can be USB powered.
Also provided as OpenSCAD file to allow for customization.
To generate a lithophane to insert into it, resize your photo to 4200 * 3150px and paste it into the template you can download here: https://drive.google.com/file/d/1MyOOwB9RqiKwXQw9m6zH3yGeR9x760dJ/view
Then upload to http://3dp.rocks/lithophane/.
Make sure to use the following settings:

Maximum size: 145mm
Thickness: 3mm
No border, base, etc.

The frame includes a housing for a 15*21mm rocker switch. The switch_housing_dummy.stl file is provided specifically to test if your switch fits snugly without printing the whole frame. If not, the attached .scad file can be modified but a model of the frame without the switch housing is also prov
