Držač za elektroniku 4 – 3D štampano

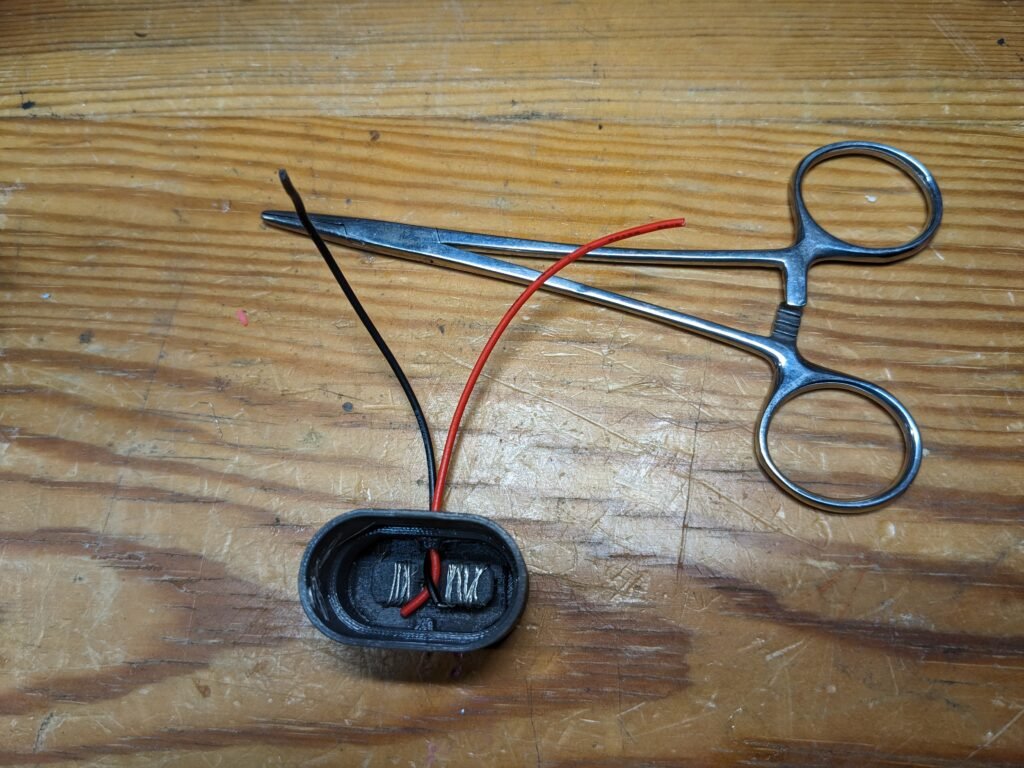

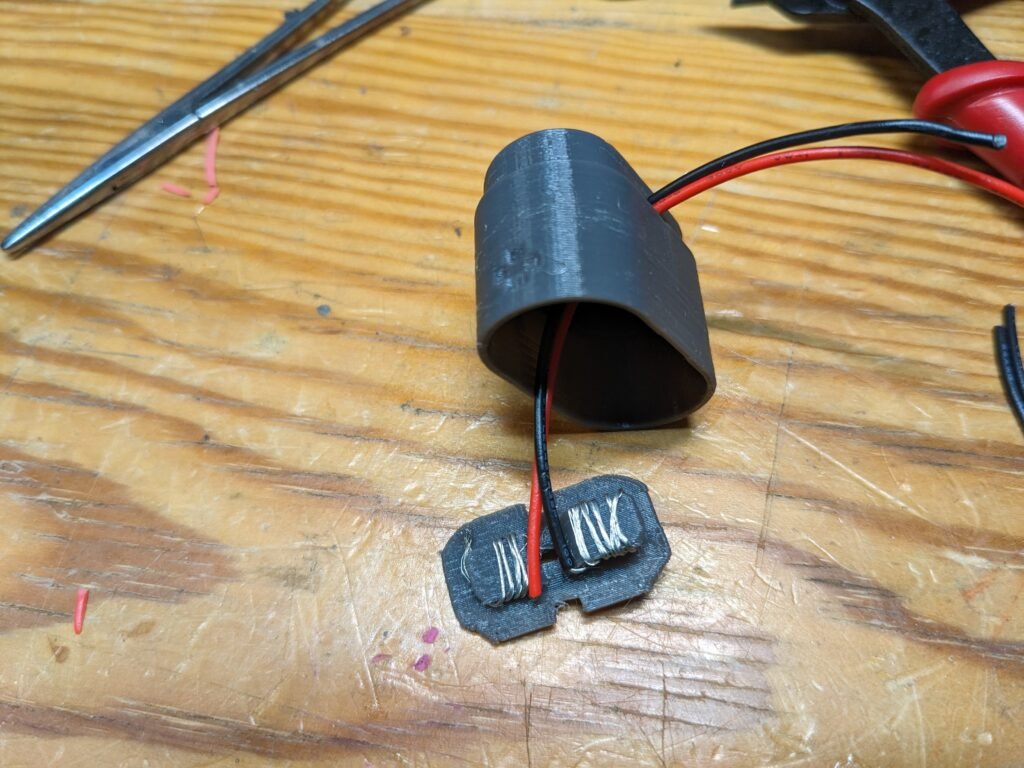

Additional materials required :Three pieces of 24 gauge (0.644mm) wire, length as required for your application. I used multi-stranded wire.There are two versions of this model :Version V04 has walls of minimal thickness – uses less material, faster print timeVersion V04B has thicker walls and is a bit sturdier – uses more material, longer print timeIn addition to the above, each version can be wired with the wires on either the top or the side. There are four parts to each model :Contact (2 required)CaseCaseTopAssembly and UseFor the bottom contact, prepare a length of wire about 150mm long by stripping the insulation from the 24AWG wire (of course equivalent un-insulated wire can also be used). Since I used multi-strand wire, I twisted the bare wires together after stripping the insulati
