Spiner za baštu – 3D štampano

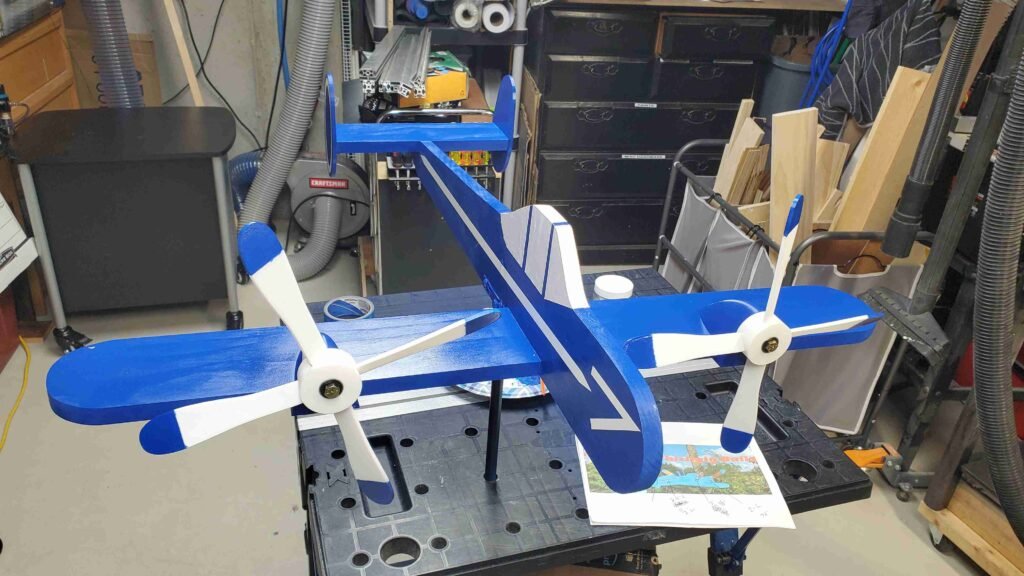

This is a hybrid project combining woodworking and 3D printing. I was inspired by this video https://youtu.be/l2514xObN6s I started by drawing out and cutting the wooden parts. I used 3/4″ pine for all parts. I then designed and 3D printed the prop assembly. The hub has two bearing housings on each side. These are 608 sealed bearings. The bearings allow for a 5/16 bolts to act as a shaft. I designed and 3D printed the engine cowls with holes that I tapped for 5/16-18 bolts. I also included a template for locating the holes to be drilled in the main wing. I used self-tapping flathead screws with tapered holes in the wing. Don’t forget your pilot holes. I designed and 3D printed the tail wingtips. I used self-tapping screws to attach. Don’t forget your pilot holes.&n
