Dizajn: Punkgeek

The stick on LED strips many folks use have two problems this tries to address:

They have glare due to the LEDs facing the user – so this mount angles them in slightly to face the printer.
The adhesive gets weak with heat and falls down – so this mount lightly clips the strips so they can’t fall down.

I’ve included a link to the web editable Onshape 3D model. This should fit the 12mm wide LED strips commonly available from aliexpress etc… but it is fully parameterized. For different strips or light angles just change the stripWidth or angle variables.

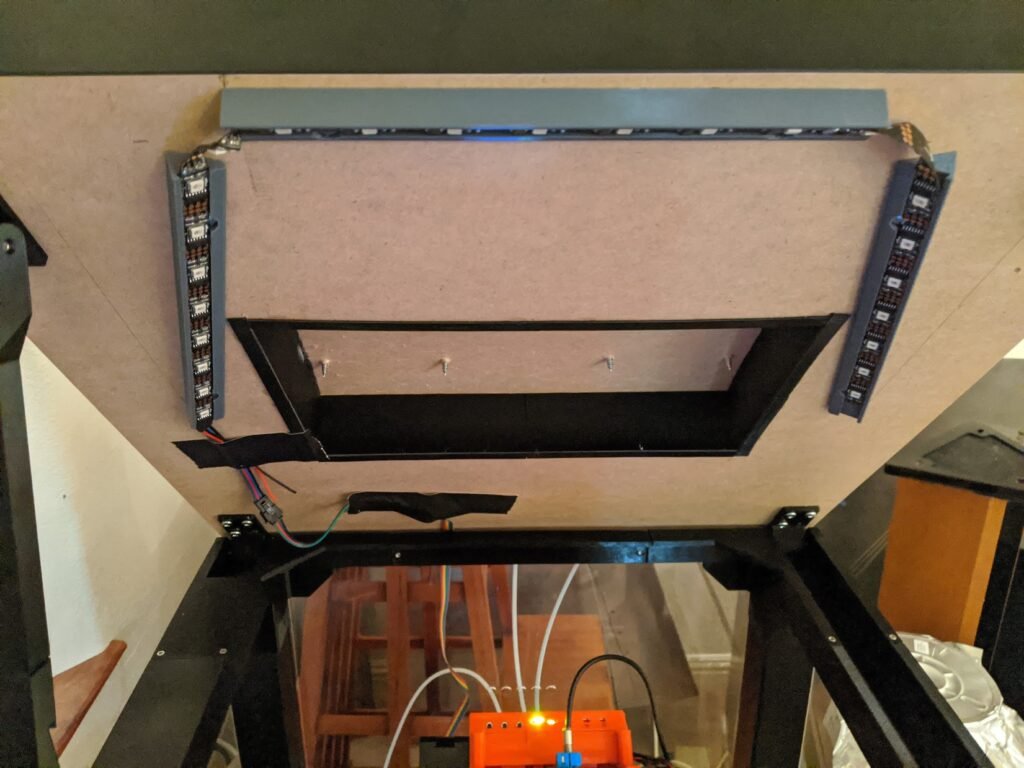

Print instructionsThis 3mf file includes three instances of the holder, which is what I think you should use for mounting. One in the front and one on each side (none in the back).
