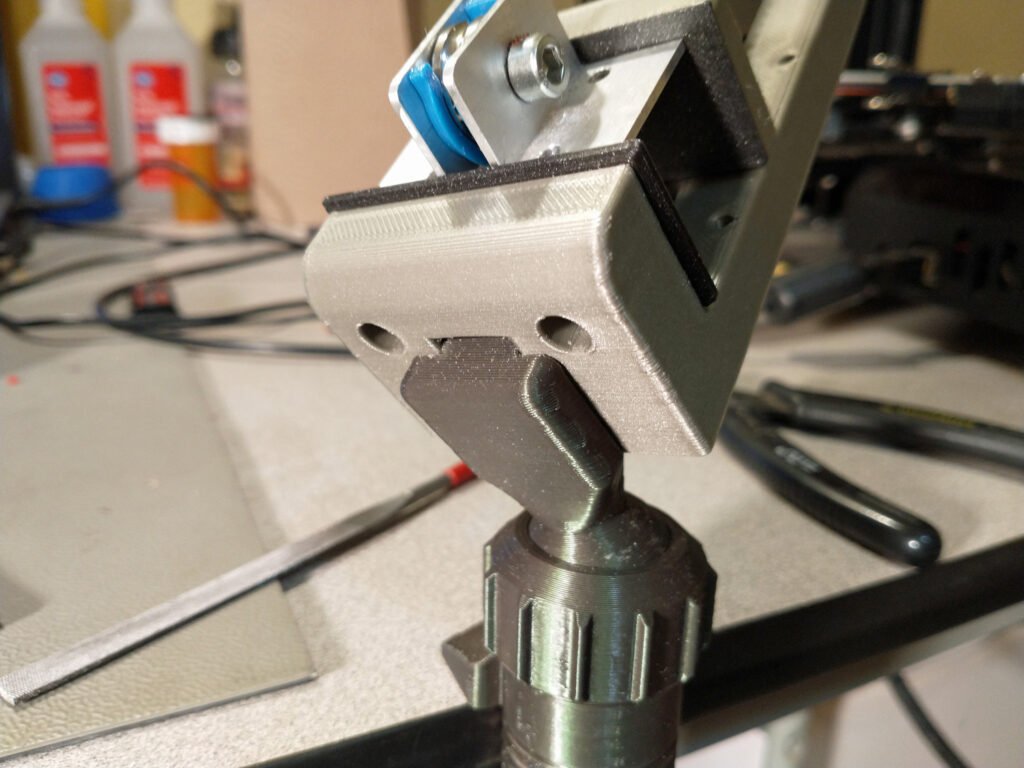

This desk clamp is designed for my Quick-Adjust Half-Nut Vise. The vise slides onto the dovetail piece, which can be positioned to different angles with a ball & socket joint. The body of the clamp is a big screw that moves a shallow jaw for clamping onto narrow table edges (0-40mm thick). The ball & socket adjust +/-30 deg. in all directions. I’ve provided two versions of the dovetail mount – one straight, and one angled at about 30 deg. to provide a more convenient range of tilt angles.PrintingAll parts print in the orientations provided.  If you have good adhesion, no brim or raft should be required. Note that the dovetail piece also includes a print-in-place clamping nut for the ball & socket joint. AssemblyInsert the partial arc portion of the jaw into the lower
